MOVIN Studio

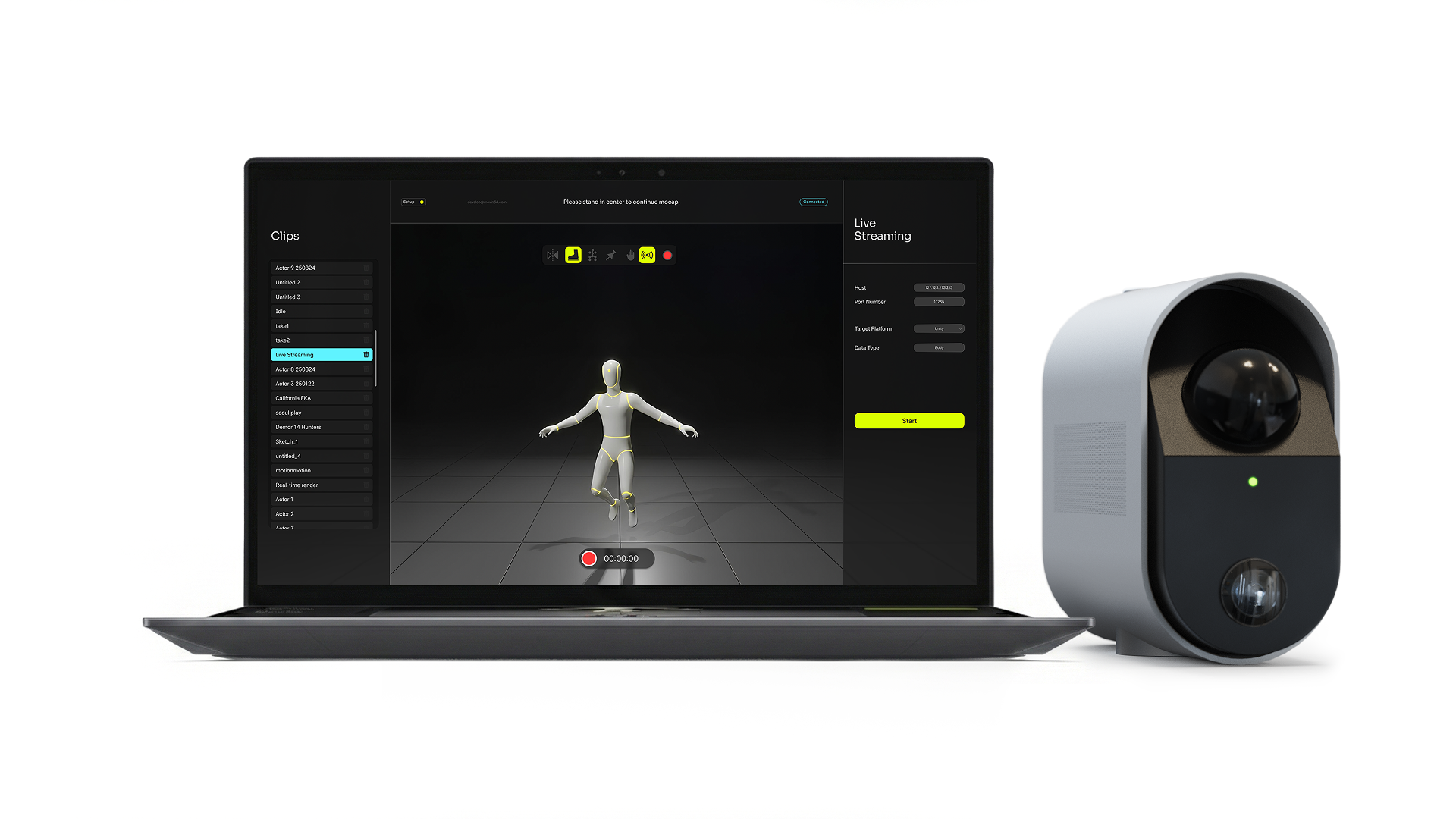

Dedicated control and visualization application built for MOVIN TRACIN with a smooth and intuitive interface that keeps you focused on the quality of the motion
Download MOVIN Studio
Requirements
Hardware Specification
Processor: 3.0+ GHz Intel i7 CPU
Memory: 16 GB or higher
Network: Dedicated 1 Gigabit Ethernet port (separate from local network)
Operating System
MOVIN Studio is currently available only for Windows. Windows 11 (64-bit) is recommended.
For large-scale interactive exhibitions or concerts, contact contact@movin3d.com
License Authentication
An internet connection is required once to authenticate the license.
After authentication, MOVIN Studio can run offline for up to 24 hours.
Speed up your character animation workflow
Setup
Calibration
Capture
Trim, Export
Live Stream
Retargeting
Additional Features

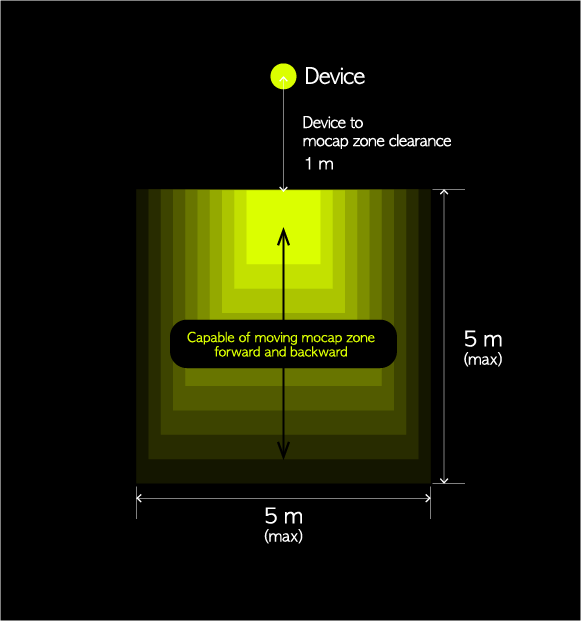

MOVIN Studio setup takes two simple steps: connect MOVIN TRACIN to your PC through an Ethernet connection, then define the mocap zone. A visual interface helps achieve accurate ground leveling using point clouds. Points close to the reference line appear in green, while those above or too far away appear in red, indicating misalignment.
MOVIN Studio completes calibration in just 3 seconds using AI. Stand at the center of the mocap zone and hold an A-pose without moving. If the performer changes, click Calibrate Actor to create a new profile. Profiles can be renamed or deleted, and selecting the correct performer profile helps achieve high-quality mocap data.
A set of built-in tools helps you monitor and refine motion capture. Use features such as Foot Contact, Skeleton View, Mirror Mode, and In-place Mode in real time. You can also navigate the scene with the mouse to rotate, pan, and zoom from any angle.
Click Review Clips to view recorded motion clips. You can adjust playback speed, trim clips, and export them in .bvh or .fbx formats for use in Blender, Unity, Unreal Engine, and MotionBuilder.

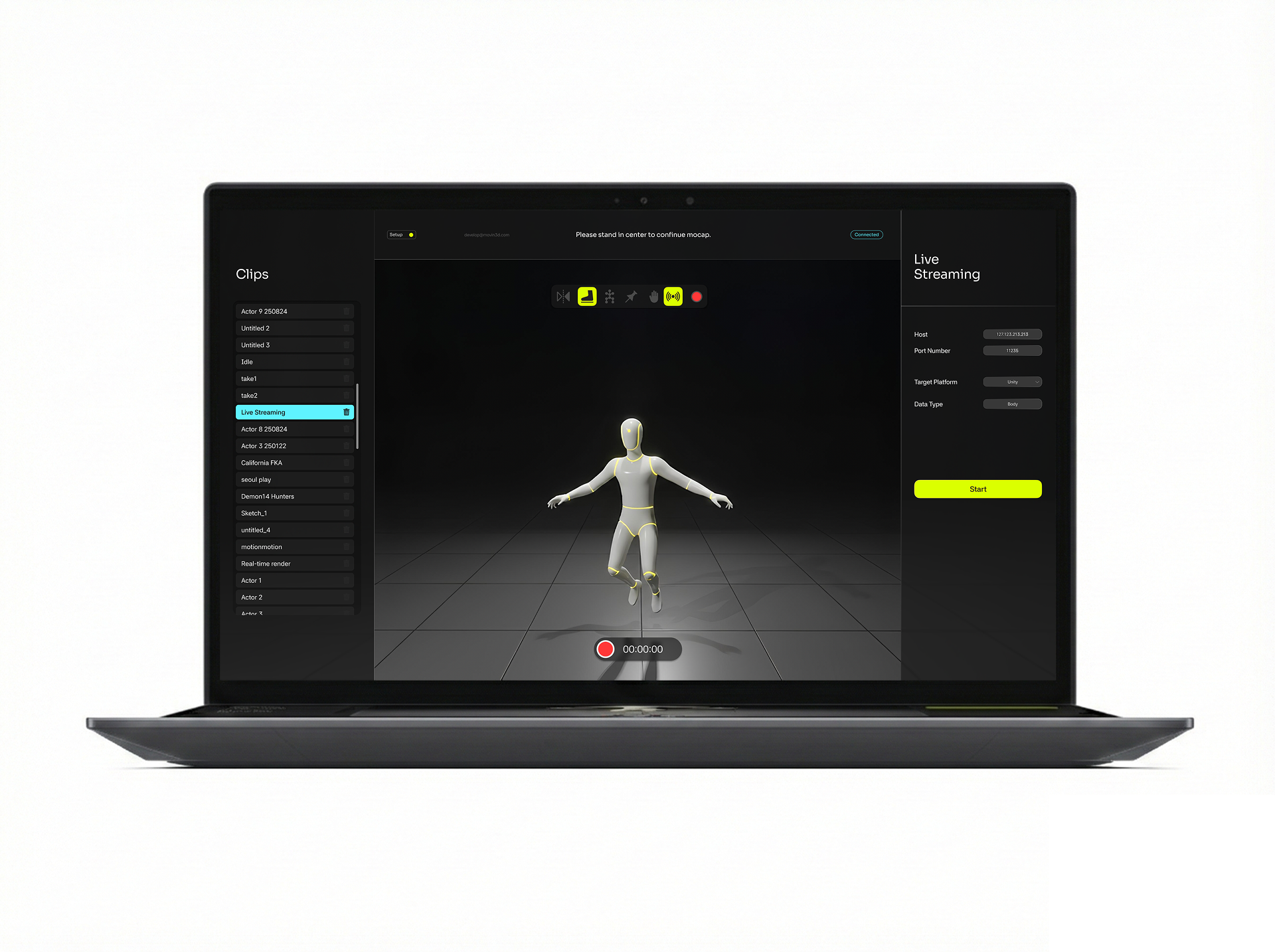

Use Live Streaming to send motion data from MOVIN Studio to other platforms in real time. It supports tools such as Warudo, VRChat, Unity, Unreal Engine, Blender, Notch, TouchDesigner, and ROS, and can stream to any platform that supports the OSC protocol.

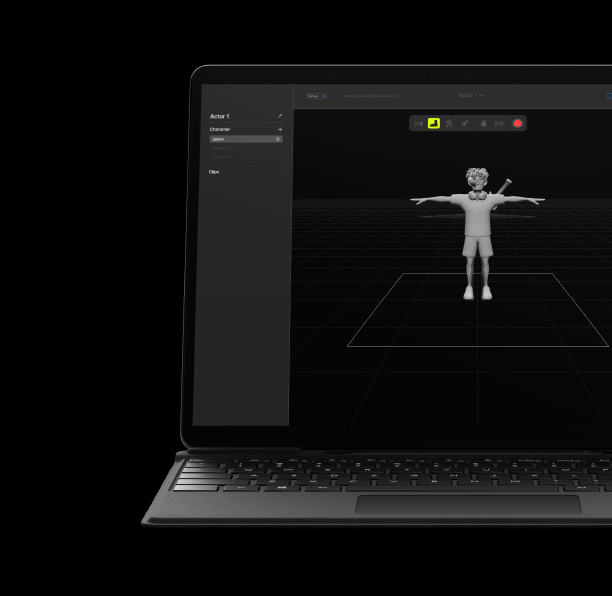

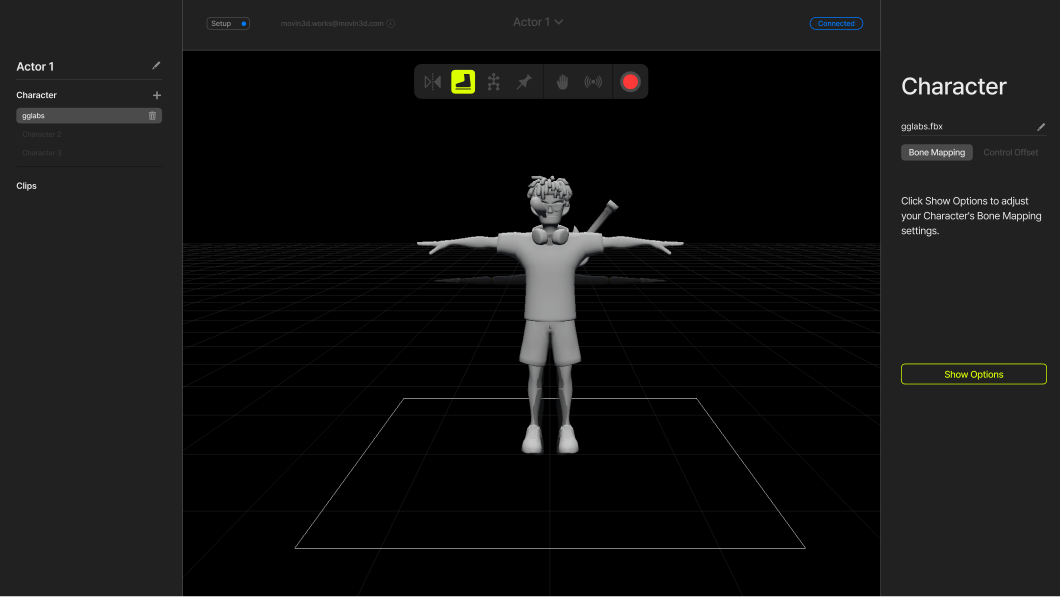

Retargeting allows motion captured with MOVINMan to be applied naturally to custom characters. The process consists of four steps: Pose Matching to align the rest pose, Bone Mapping to match the character’s bones with MOVINMan, Retarget Settings to adjust how the retargeting algorithm transfers motion to the character, and Bone Offset to adjust individual bones when character proportions differ from MOVINMan.

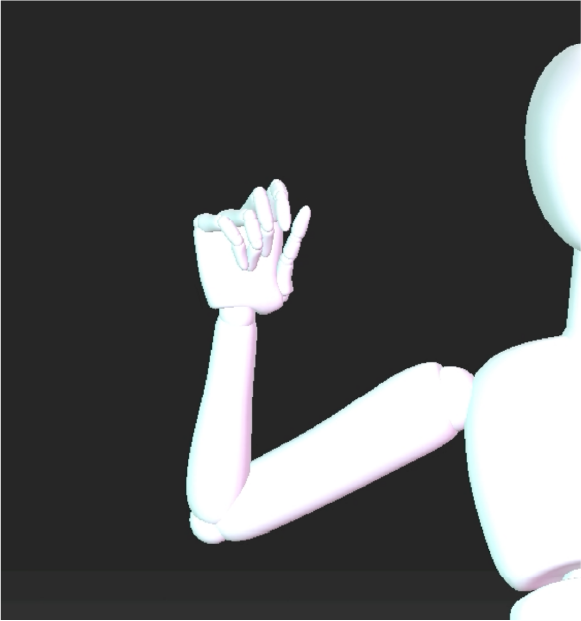

To support a wide range of use cases, MOVIN Studio also provides additional features. Puppet Mode allows a single user to prepare all settings in advance and operate motion capture independently. Third-party glove support enables accurate hand capture that integrates seamlessly with full-body motion. Facial motion capture can also be recorded separately using a smartphone and combined with full-body motion data.
Ready for Every Pipeline

MOVIN Studio connects seamlessly with major platforms, helping you adapt to any production environment. Captured motion can also be exported in various formats, ensuring compatibility across diverse pipelines.

Unreal Engine
Download Documentation
Unity
Download Documentation
Notch
Download Documentation
TouchDesigner
Download Documentation
Blender
Download Documentation
VR Chat
Documentation
WARUDO
Documentation
Plans

Unlimited Access. Unlimited to you.

.
Price
Basic
$ 0
Try Out for Free
Unlimited
Year
Year
Month
Week
$ 3,300
Buy License
$ 300
Buy Unlimited Ticket
$ 100
Buy Unlimited Ticket
Perpetual
$ 12,000
Buy Package
Live Update
Maintenance Updates
Access to New Features
‍
Login
Offline duration until reconnect
Capture
3-second AI calibration
Markerless full-body mocap
Low-light mocap
Record mocap data
Export to .fbx, .bvh format
Export with point clouds & images
Maximum number of subjects
Hands
Finger mocap by MOVIN
Wrist mocap by MOVIN
Hands mocap by 3rd-party gloves
Retargeting
Import custom character
Full-body FK retargeting
Hands FK retargeting
Advanced IK retargeting
Unlimited Live Stream
Full-body motion
Full-body, finger & wrist motion
Motion with point cloud & images
Virtual Avater Platforms

‍
3D Engines

‍
Live Visual Tools
‍
Robotics & Simulation Tools
‍
Protocols
Real-time AI Cleanup
Foot sliding removal
Jitter (noise) removal
Ground penetration removal
Editing
Trimming
Motion clip post-processing
Objects
Object masking
Live Update
Maintenance Updates
X
Access to New Features
X
‍
‍
x
‍
Log-in
Offline duration until reconnect
X
Capture
3-second AI calibration
X
Markerless full-body mocap
X
Night mode (low-light) mocap
X
Record mocap data
30min / month
30min
/ month
Record length limit
30min
Export to .fbx, .bvh format
X
Export with point clouds & images
X
Hands
Finger mocap by MOVIN
x
Wrist mocap by MOVIN
X
Hands mocap by third-party gloves
X
Retargeting
Import custom character
X
Full-body FK retargeting
X
Hands FK retargeting
X
Access to New Features
X
Unlimited Live Stream
Live stream full-body motion
O
Live stream full-body, finger & wrist motion
X
Live stream motion with point clouds & images
X
Virtual Avatar Platforms
Warudo
VR Chat
Meligo
3D Engines
X

‍
Live Visual Tools
X
‍
Robotics &Simulation Tools
X
‍
Protocols
X
Real-time AI cleaup
Foot sliding removal
O
Jitter (noise) removal
O
Ground penetration removal
O
Editing
Trimming
O
Motion clip post-processing
X
Objects
Object masking
X
O
O
O
O
‍
O
‍
‍
O
24 hours
O
O
O
O
O
O
O
Unlimited
Unlimited
‍
O
Unlimited
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
Warudo
VR Chat
Meligo
O
Unity
Unreal Engine
Blender
O
Notch
TouchDesigner
O
ROS
Isaac Sim
O
OSC
O
O
O
O
O
O
O
O
O
O
O
O
O
Included features supported with fixes; New features via paid Upgrade Package
O
O
24 hours
O
O
O
O
O
O
O
Unlimited
Unlimited
‍
O
Unlimited
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
Warudo
VR Chat
Meligo
O
Unity
Unreal Engine
Blender
O
Notch
TouchDesigner
O
ROS
Isaac Sim
O
OSC
O
O
O
O
O
O
O
O
O
O
O
O

Frequently asked questions

Do I need to purchase an additional license to use MOVIN TRACIN?
No. When you purchase MOVIN TRACIN, a Basic License is included for free.
With the Basic License, you can capture up to 30 minutes of motion per month and enjoy unlimited live-streaming to virtual platforms such as Warudo and VRChat at no additional cost.
What do the Unlimited License and the Perpetual Package include, and how are they different?
Both the Unlimited License and the Perpetual Package offer unlimited motion capture, hands motion capture through MOVIN TRACIN, and unlimited live-streaming to 3D engines such as Unity and Unreal Engine, as well as live visual tools like Notch and TouchDesigner.
The key difference is how the features are provided. The Perpetual Package is a one-time purchase and includes a fixed set of features based on the version you buy. Any new features added afterward are not included, and you’ll need an Upgrade Package to use those newer features.
‍The Unlimited License allows unlimited use during the period you purchase and includes every new feature and update released during that time.
Is a Wi-Fi or internet connection required?
The Basic License requires an internet connection at all times.
If you have the Unlimited License or Perpetual Package, an internet connection is required only for the login and setup. After this, you can continue using the product offline as long as the device remains connected and your setup isn’t reset.
If you need to set up the device offline, you can use the product for up to 24 hours as long as you have completed the setup online at least once before. After the offline period ends, you’ll need to reconnect to the internet to refresh access.
Additional information about MOVIN TRACIN?
You can find more about MOVIN TRACIN by following @movin3d on Youtube, Instagram, X, and Linkedin. We also share updates, demos, and additional information via Discord community, so piease feel free to join us there.
Let’s get started with MOVIN TRACIN

MOVIN’s on-device AI fuses LiDAR point clouds and vision to turn raw capture into production-ready motion data. Built for entertainments, robotics, sports, and more.
